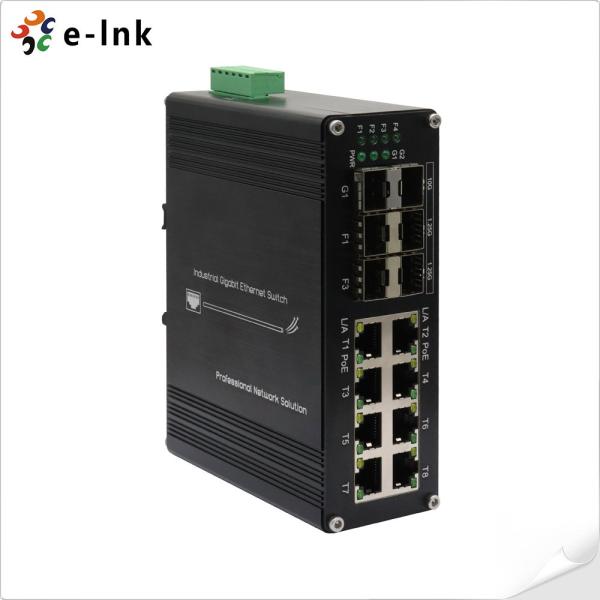

Industrial PoE Switch with 8-Port 10/100/1000T+ 6-Port 1000X SFP

Name: Industrial PoE Switch with 8Port 101001000T 6Port 1000X SFP
Brand: E-link
Price: 29.9 USD

Wholesale Industrial PoE Switch with 8-Port 10/100/1000T+ 6-Port 1000X SFP from china suppliers

Brand Name : E-link

Model Number : LNK-IMC608GP-SFP

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : $29.9-389

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 5-12 working days

Packaging Details : PoE Ethernet Switch Standard Export Package

Key Word : Industrial PoE Switch

Connector : 8 x RJ45

Optical Port : 6 x 1000Base-X SFP

Input Power : 48~57VDC

Power Pin : 4/5(+), 7/8(-)

Operating Temperature : -40°C to 80°C

Contact Now

Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch

Industrial PoE Switch Advantages

► 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

Technical Indexes

Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet(Per Port):	Link/Activity
PoE (Optional)	PoE Status
Fiber:	Gigabit SFP Port: F1~F6
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount

Overview

LNK-IMC608GP-SFP Series is 8-port 10/100/1000Base-T 802.3at PoE + 6-port 1000Base-X SFP hardened Ethernet

switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode,

and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber.

Industrial PoE Switch with 8-Port 10/100/1000T+ 6-Port 1000X SFP

Ordering Information

Model	Description
LNK-IMC608GP-SFP	Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

Product Tags:

8-Port Industrial PoE Switch

1000X SFP Industrial PoE Switch

6-Port Industrial PoE Switch
