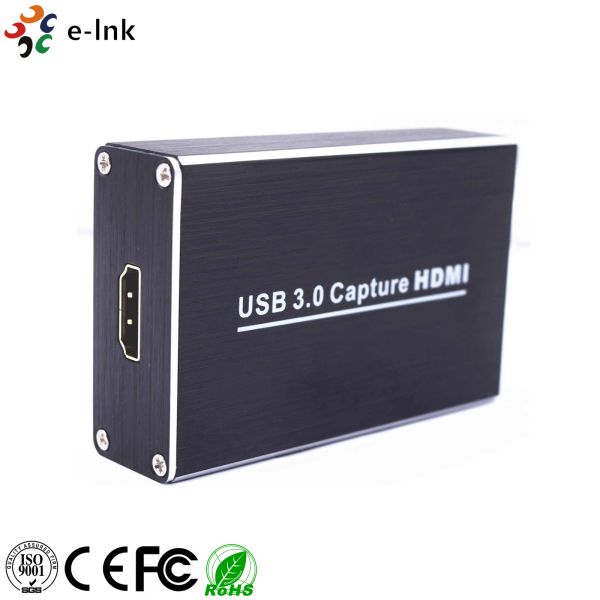

HDMI to USB3.0 Video Capture Dongle
Product Advantages
· Full digital, Uncompressed HD optical fiber transmission
· It doesn't need to install a driver, and it is truly PnP.
· It is compatible with Windows, Linux, OS X operating systems
· USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
· The process of video and audio is done by the dongle and will not occupy the CPU.
· It can capture one single channel HD HDMI video signals.
· It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
· The input and output video signal can reach 1080p/60 Hz.
· It is compatible with UVC video capture and YUV 422 video output.
Overview
The HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 1080p60 input and output signal; compatible with Windows, Linux, Mac OS X and USB 3.0 interface, Compatible with many USB 3.0 chipset (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0interface
Technical Indexes
| Host Interface | USB3.0, *300-350MB/s, USB2.0, *40MB/s |
| Input Interface | HDMI |
| HDMI Input Formats | 480i,480p,576i,576p,720p50, 720p60,1080i50,1080i60, 1080p24/25/30/50/60; |
| Output Formats | 640x480/720x480/720x576/768x 576/800x600/1024x768/1280x720/1280x800/ 1280x960/1280x1024/1368x768/1440x900/1600x 1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576 |
| Frame Rate | 25/29.97/30/50/59.94/60 fps |
| Audio and video capture standards of UVC and UAC | support of OS Windows 7 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above) |
| Software compatibility | Windows Media Encoder (Windows) Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X) Potplayer(Windows)and etc. |
| Development interface compatibility | DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime) |
| Size | 79.5x51x21 (L/W/H, mm) |
| Power consumption | <= 2.5W |
| Working Temperature | 0-50 deg C |
| Storage Temperature | -20-70 deg C |
| Storage Humidity | 5%-90% |
Ordering information
| Item | Description |
|
| LNK-HU03 | HDMI to USB3.0 Video Capture Dongle with 1PCS USB3.0 Cable,1PCS HDMI cable |
